A high-performance, safe, and efficient loading dock is one of the most critical operational points in the seamless supply chain of warehouses, industrial facilities, logistics centers, and large retail spaces. The 24/7 loading and unloading operations in these areas require a well-planned and durable lighting solution that supports worker safety and operational efficiency.
At loading ramps, it is important to ensure adequate and controlled lighting not only around the ramp and the vehicle but also inside the vehicle, cargo area, and containers. Insufficient or inappropriate lighting can make it difficult to properly see and handle cargo, leading to an increased risk of operational errors, product damage, and workplace safety hazards.
The ODAK LED Projector Loading Light was developed to provide the powerful, controlled, and adjustable lighting required specifically in truck and trailer loading and unloading areas. Combining a compact projector housing with a movable, articulated arm, the product allows the light to be directed toward the required work area.
Thanks to its articulated arm design, which can move 90°, the projector can be directed into the interiors of trailers and truck bodies as needed. This allows for effective illumination not only of the loading ramp and the area around the vehicle, but also of the loading area inside the trailer or truck body. This design enables flexible use across different vehicle sizes and varying loading conditions.
The Loading Light is designed to support safe and efficient loading and unloading operations at warehouses and logistics centers, manufacturing facilities, distribution centers, large-scale retail operations, and industrial facilities with heavy vehicle traffic.
The 53 W version of this product, which offers a luminous flux of 7,420 lm and an efficacy of 140 lm/W, combines high light output with energy efficiency. The product family offers various power options ranging from 26 W to 229 W, as well as different light distributions tailored to specific application needs.
Design and manufacturing can be tailored to project requirements with different arm lengths, optical options, color temperatures, and mechanical configurations.
- Power Consumption: 26–229 W
- Efficiency Factor: 140 lm/W
- Input Voltage: 220–240 VAC
- Input Frequency: 50–60 Hz
- Power Factor: >0.9
- Color Temperature: 3000K / 4000K / 5000K / 6500K
- CRI: >70
- Operating Temperature: -25 °C / +40 °C
- LED Lifespan – L70: 60,000 hours
- Optical: PMMA or PC
- Refractor: Min. 4 mm high-transmittance tempered glass; UV-resistant optional
- Body: Corrosion-resistant, high-pressure die-cast aluminum
- IP Protection Rating: IP66 – IP67 (optional)
- Impact Resistance: IK08–IK10 (optional)
- Connector: IP66, brass
- Application: Surface-Mounted – Cable Trough – Busbar
Loading ramps with heavy vehicle traffic
Large retail and distribution facilities
Distribution Center
Loading Areas
Industrial Facility
Warehouse & Logistics

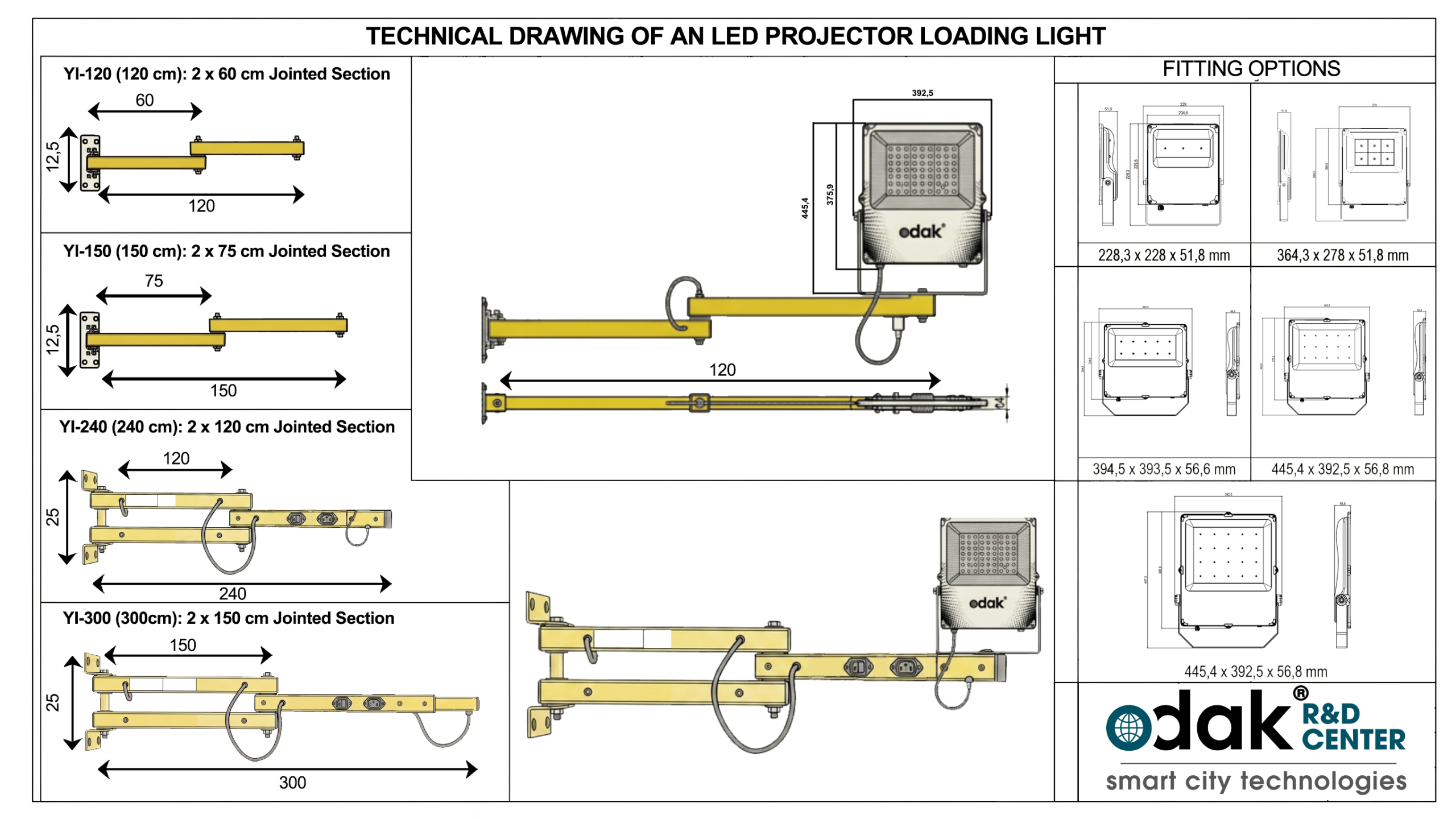

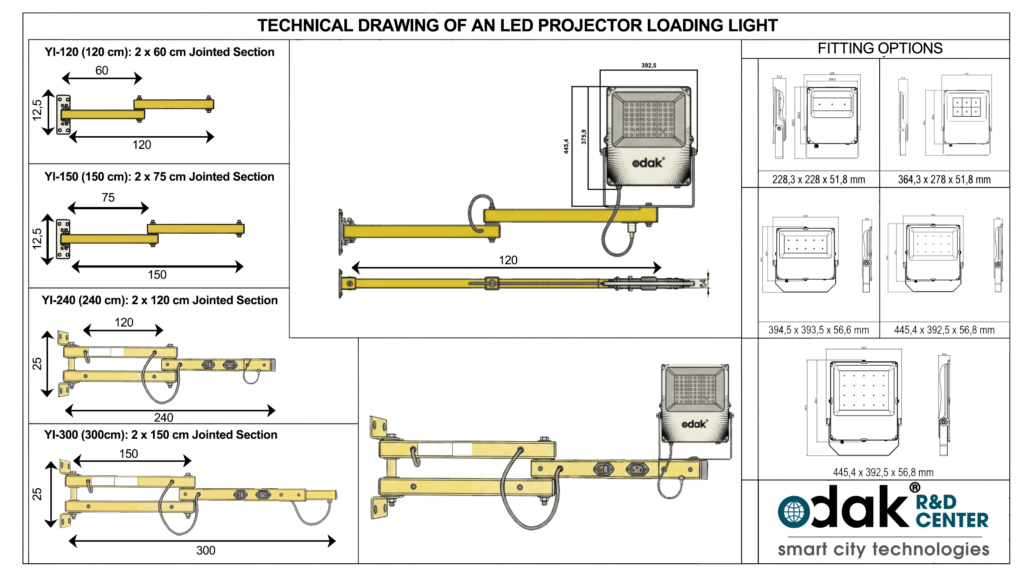

The movable arm is one of the product’s key functions and allows the projector to be directed into the vehicle’s cargo area.
| Sleeve Length | Structure | Usage |
| 120 cm | 2 × 60 cm articulated section; 90° movement | Routing into the trailer/cargo area |
| 150 cm | 2 × 75 cm articulated section; 90° movement | Extended reach and trailer/cargo area lighting |
| 240 cm | Long-arm configuration | Application-Specific Lighting |
| 300 cm | Long-arm configuration | Application-Specific Lighting |
- 53 W power and 7,420 lm total luminous flux
- 140 lm/W efficacy
- Articulated arm structure capable of moving 90°
- Arm options: 120 cm, 150 cm, 240 cm, and 300 cm
- The ability to direct the LED projector into the trailer/cargo area
- 26–229 W product family
- Current product configuration with a 110° optical option
- 3000K / 4000K / 5000K / 6500K color temperature options
- IP66–IP67 protection rating options
- IK08–IK10 impact resistance options
- L70: 60,000-hour LED lifespan
- Design and manufacturing tailored to project needs
- TS EN 60598
- TS EN 60529
- TS EN 62031
- TS EN 62262
- TS IEC TR 62471
- TS EN 62722-2-1
| Product Code | Power | Input Voltage | Luminous Flux | Angle of Incidence | Dimensions |
|---|---|---|---|---|---|
| ANT-026SM-01102-850-9004 | 26W | 220-240 V AC 50/60 HZ | 3640lm | 110° | 228,3 x 228 x 51,8 mm |
| ANT-053SM-01102-850-9004 | 53W | 220-240 V AC 50/60 HZ | 7420lm | 110° | 364,3 x 278 x 51,8 mm |
| ANT-095SM-01102-850-9004 | 95W | 220-240 V AC 50/60 HZ | 12936lm | 110° | 394,5 x 393,5 x 56,6 mm |
| ANT-142SM-01102-850-9004 | 142W | 220-240 V AC 50/60 HZ | 17040lm | 110° | 445,4 x 392,5 x 56,8 mm |
| ANT-186SM-01102-850-9004 | 186W | 220-240 V AC 50/60 HZ | 24700lm | 110° | 497,5 x 392,5 x 58,8 mm |
| ANT-229SM-01102-850-9004 | 229W | 220-240 V AC 50/60 HZ | 29426lm | 110° | 497,5 x 392,5 x 58,8 mm |
