When considering a drone, the need to capture video/photos with a camera also arises. Based on these needs, the G6LVS, the most professional drone with advanced lighting functions, was developed. With the G6LVS model, you can capture 4KHD video at 30 frames per second, day or night. You can connect your smartphone to the UAV via an app downloaded to your smartphone and view the videos captured through its camera. Additionally, videos captured on the drone are recorded on a Micro SD card (512GB).
The G6LVS model also features RTK technology, which provides precise positioning capability. This technology enables positioning with centimeter-level accuracy. The G6LVS model can also meet operational requirements at altitudes of up to 4500 meters. It is designed to meet the needs of search and rescue teams with a 1.25kW power unit, 600W LED lighting module, and 4K HD camera.
The 600W lighting capability makes it easier to scan large areas. Under the drone, there are 3 sets of LED lighting modules, 2 of which can be directed to the desired area via remote control. With the G6LVS, you can safely operate at heights ranging from 5 meters to 50 meters. The maximum flight height is 50 meters due to the power cable.
You can fly continuously at any point where you have mains voltage. In emergencies or power outages, the battery inside the power unit will automatically ensure the safe landing of the UAV.
- Product Name: G6LVS
- Centimeter Precise Positioning: RTK Technology
- Flight Altitude (m): 50m
- Automatic Take-off: One-Key Takeoff
- Automatic Landing: Yes
- Emergency Landing Mode: Yes, Automatic
- Take-off Weight(gr): 1410gr
- Dimension (mm): 296*296*203
- Wind – Rain Class: Class7 (13,9῀17,1m/sn) – Class10 (10L/sn)
- Maximum Working Height (Altitude) Operation Possibility: 4500 m
- Working Temperature (°C): -20°C – +50°C
- Lens: 170° Wide Angle
- Video Resolution: 4K HD Video 1080p, 30FPS
- Video Format / Video Recording: MP4 – H265 / SD Kart(512GB)
- PTZ Controlled Rotation Range: pan +/- 90°, tilt +/- 30°
- Vibration Damper: ✓
- Gimbal: 3 Axis
- Lighting Unit Power (W): 600W
- Lighting Source: Power LED
- Correlated Color Temperature (CCT): 6500K
- Color Rendering Index: +70
- Lighting Area: >5000m2
- Remote Controller Communication Frequency (Ghz): 2.4Ghz
- Remote Control Communication Distance: <500m
- Channel Number: 32
- Input Voltage (AC): 220-240V, AC 50/60Hz
- Max. Power (W): 1250W
- Assembly Time / Working Area: 3min / 5m²
- Weight : 17440 gr
- Dimension :L76x W54 x H40 cm
- Reel Winding – Release: ✓, Automatic – Manual
| Product Code | Payload | Power | Input Voltage | CCT/CRI | Take-Off Weight | Flight Time | Dimensions | Wire Length |
| G6LVS-04-RW-32-TET-50-CAM | Lighting+ Camera | 600W | 220 VAC 50-60 Hz | 6500K / 70 CRI | 1410gr | 24h | L76x W54 x H40 cm | 50 m |
- Product average maximum power is 1.25 kW. You can use a generator or portable power station where there is no mains voltage.
- You can use the product for at least 1 hour with a 1250W Lithium Battery portable power station
- •You can also use it without interruption with a gasoline generator with a continuous power of at least 1.25kW. We recommend a generator due to price/performance and long-term use.

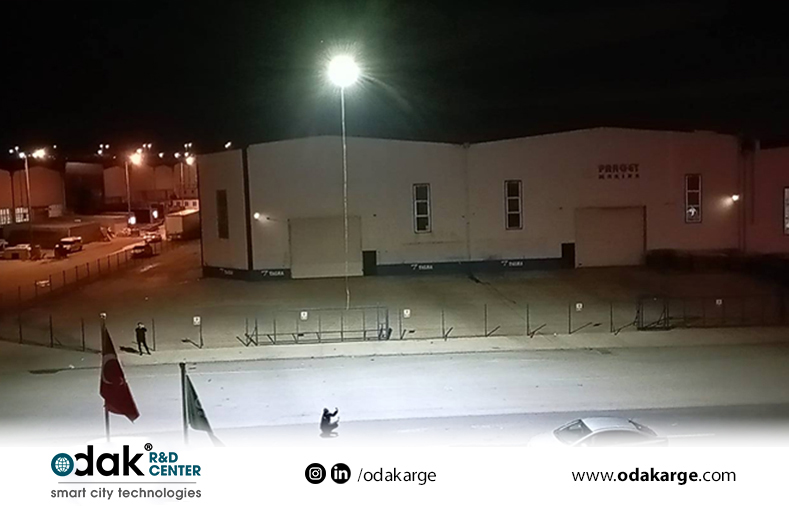

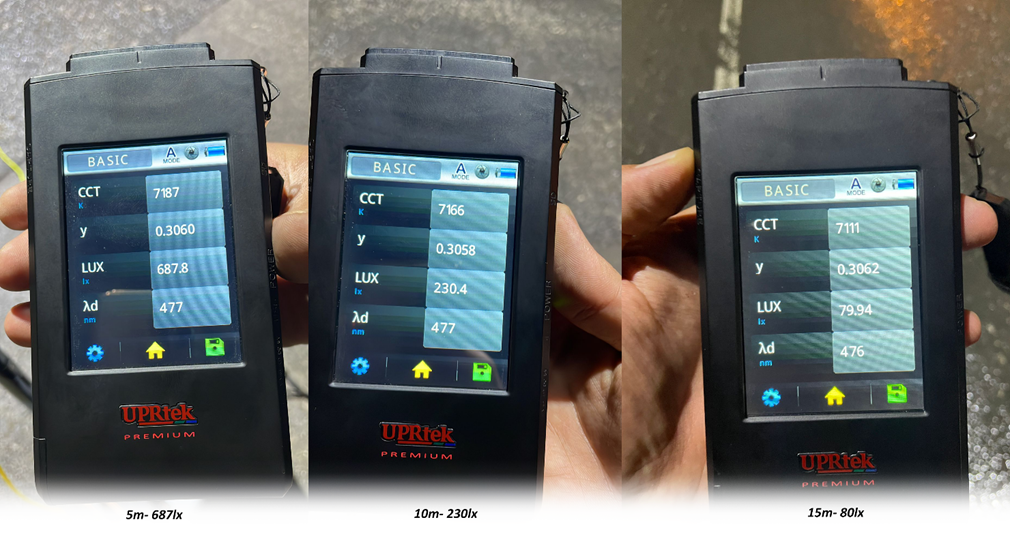

In the illumination test performed by taking our wired illuminated aircraft to an altitude of 5m (AGL), 687lux was obtained on the ground, 230lux was obtained at an altitude of 10m (AGL) and 80lux was obtained in the illumination measurement made while flying at an altitude of 15m (AGL). The visuals of the results of the measurements made with the Luxmeter at 5m, 10m and 15m are as follows.
Frequently Asked Questions (FAQ)
In this section, you’ll find answers to the most frequently asked technical and usage questions about the product.
The G6LVS is our most professional model, featuring not only high-power lighting but also an integrated 4K HD camera system. This allows you to not only provide lighting but also capture real-time footage from the worksite and record it with support for SD cards up to 512 GB.
The device features a 170° wide-angle camera capable of recording 4K video at 30 frames per second. Thanks to the mechanical gimbal and EIS (electronic image stabilization), it captures shake-free footage. By connecting your smartphone to the professional controller, you can view the live feed in real time via the dedicated app.
Yes. The 600W LED modules on the G6LVS consist of three groups. Two of these modules can be controlled via the remote (pan/tilt control), allowing you to focus the light exactly where you need it without changing the drone’s position.
The G6LVS is equipped with RTK (Real-Time Kinematic) technology, which provides centimeter-level positioning accuracy. This technology ensures that the drone remains much more stable and steady in the air, particularly in windy conditions or during search-and-rescue operations that require precise coordinates.
The G6LVS, which can reach a maximum altitude of 50 meters when connected to a power cable, can effectively illuminate an area of 5,000 square meters or larger with its 600W lighting power. It is capable of operating at altitudes of up to 4,500 meters.
Designed for harsh field conditions, the G6LVS features Class 10 rain resistance and Class 7 wind resistance (approximately 13.9–17.1 m/s). This high resistance rating ensures the device operates safely and continuously even in severe weather conditions.
