G5L+ Tethered Lighting Drone

  The use of lighting-equipped UAVs is quite widespread in industry. Their 24/7 continuous use is planned in various fields, ranging from the military sector to security forces and even search and rescue operations.

    While the gendarmerie traffic police want to transport the wreckage of a vehicle that rolled into a ditch behind an off-road vehicle for search and rescue operations, the railway maintenance crew wants the device to be carried on their backs to assess the condition of a derailed train/carriage. Police search and rescue teams also request the option of carrying the device on their backs for vehicles or people that have fallen into the sea, river, or lake. Based on these types of needs, the G3L model was modified and converted into the G5L+ model, which is portable on the back and rainproof, and was launched on the market. It has a 900W power unit and a 520W LED lighting module.

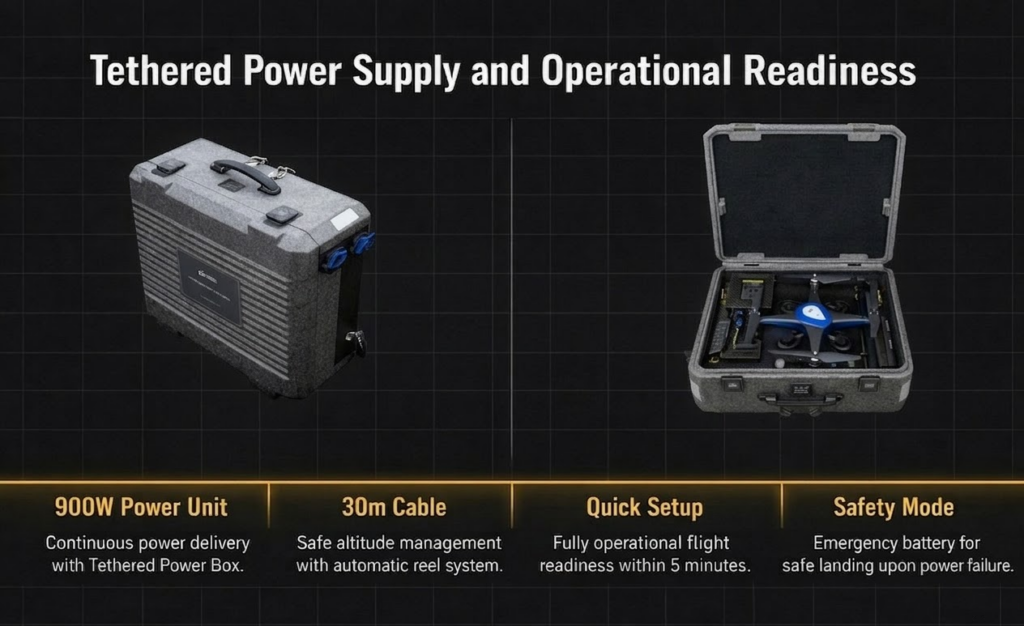

    The UAV, named G5L+, can reach an altitude of up to 30 meters. Flight is controlled via a power unit-connected remote control. It allows for one-handed control and management with its specially designed controller, eliminating the need for a professional UAV pilot. When the power is cut off, it can be powered by the battery for 5 minutes, and thanks to this feature, the cable can be collected automatically with the automatic winding system. In the absence of 110V ~ 220V mains voltage, it automatically shuts down after five minutes. The power unit must be stored in a well-ventilated area, like generators.

• Product Name: G5L+
• Flight Height (m): 30m
• Automatic Takeoff / Landing: Available (Performed with a single button press)
• Cruising Speed: ≥5.6 m/s (approximately 20 km/h)
• Ascent Rate: ≥3 m/s
• Descent Rate: ≥2 m/s
• Emergency Landing Mode: Automatically performs a safe landing using the internal emergency battery in the event of a power outage or low battery.
• Takeoff Weight: ≤900 g
• Drone Dimensions: 405 mm x 405 mm x 105 mm
• Wind – Rain Class: Class 6 (13.8 m/s) – Class 10 (10 L/s)
• Protection Class: IP54
• Maximum Working Height (Altitude) Working Capacity: 4500 m
• Operating Temperature (°C): -20°C to +50°C

• Lighting Unit Power (W) : 520W (4 sets of LED light units)
• Lighting Source : Power LED
• Color Temperature(CCT) : 6500K
• Color Rendering Index : +70
• Lighting Area: 3000 m²

• Communication Type / Cable Length: Wired / 2 meters
• Flight Control: Offers simple operation with one-handed remote control
• Satellite Count Control: Available; can track signals with GPS, BDS, GLONASS, and RTK support
• Lighting On/Off: Can be controlled in real time via the remote control
• Engine Start/Stop: Automatically controlled via takeoff and landing commands with a single button

• Input Voltage (AC):110V ~ 220V (±20%), 50/60Hz
• Max. Power (W): 900W
• Ready for Flight / Workspace: 5 min / 5 sq ft
• Roller Winding – Release: Yes, Automatic
• Cable Length: ≥30 meters
• Weight: ≤16 kg
• Dimensions (mm): 610 mm × 492 mm × 255 mm

Pre-Use Preparations	No preparation required, ready to use upon arrival, no mains electricity required
Lighting Position	It can be suspended in place, moved freely, and the light angle can be adjusted.
Lighting Capacity	A single unit covers 3000m², and multiple units can be stacked in any position.

Product Code	Payload	Power	Input Voltage	CCT/CRI	Take-off Weight	Flight Duration	Dimensions	Cable Length
G5LP-04-RW-24-TET-30	Lighting	520W	110V ~ 220V (±%20), 50/60Hz	6500K / 70 CRI	920gr	24s	610 mm × 492 mm × 255 mm	30 m

• Product average maximum power is 1 kW. You can use a generator or portable power station where there is no mains voltage.
• You can use the product for at least 1 hour with a 900W Lithium Battery portable power station.
• You can also use it without interruption with a gasoline generator with a continuous power of at least 1.2kW. We recommend a generator due to price/performance and long-term use.

 In the illumination test performed by taking our wired illuminated aircraft to an altitude of 10m (AGL), 147lux was obtained on the ground, 68 lux at an altitude of 15m (AGL) and 41lux was obtained in the illumination measurement made while flying at an altitude of 20m (AGL). The visuals of the results of the measurements made with the Luxmeter at 10m, 15m and 20m are as follows.
