Deneb Floodlight 300W

DNB-300SM-00801-865-9005

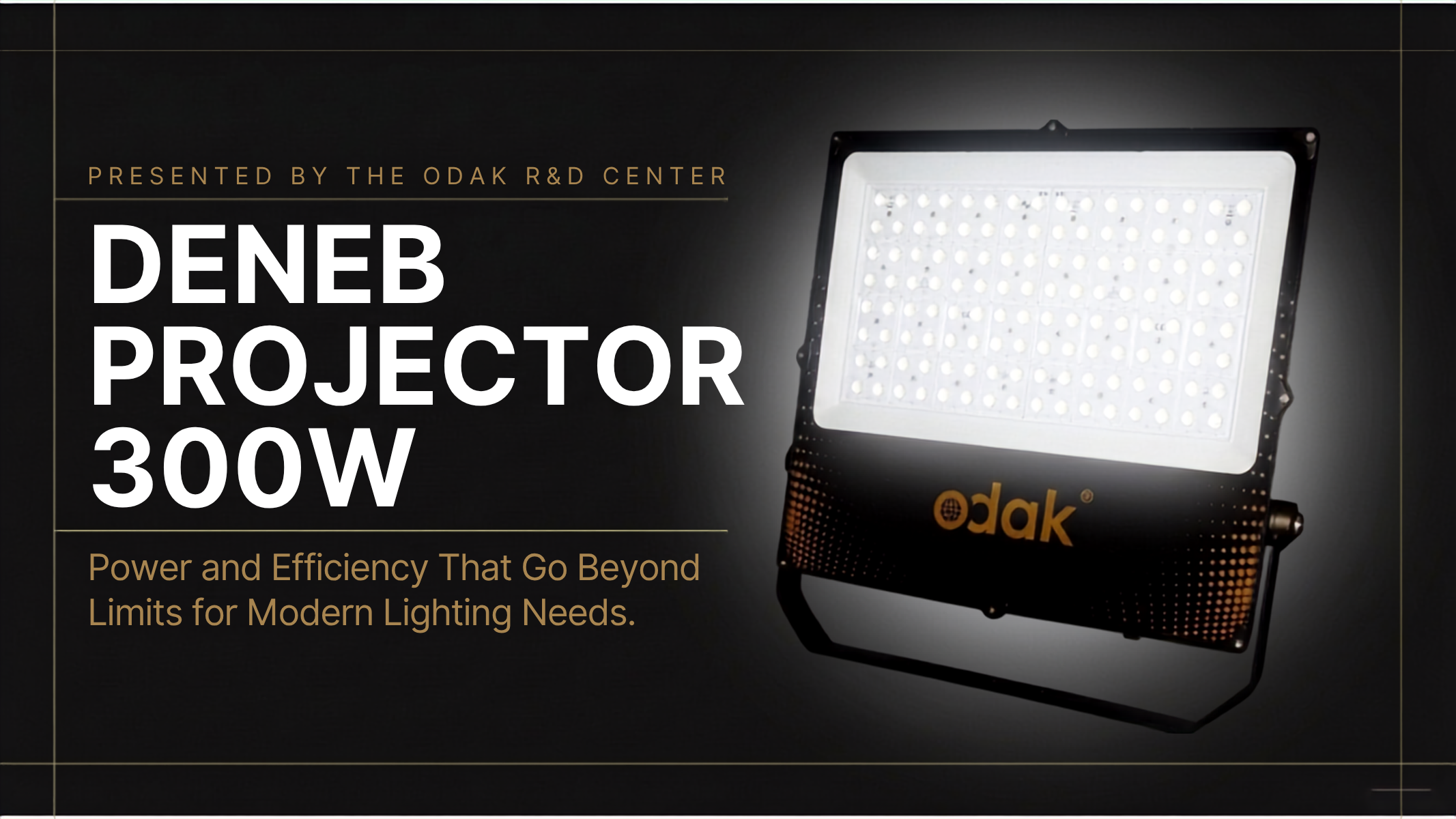

Deneb Floodlight 300W

LED floodlights are an extremely efficient and versatile solution for modern lighting needs, offering significant energy savings and a long service life compared to traditional lighting. Known for their durability and low power consumption, LED floodlights can reduce energy costs and environmental impact, making them ideal for both commercial and residential applications. Additionally, they enhance architectural aesthetics by adding visual appeal through narrow-angle or wide-angle/area lighting options that highlight structural details. With a variety of light distribution options and lighting patterns available—ranging from narrow-angle spotlights to wide-angle lighting—LED projectors offer customizable solutions for different environments and lighting requirements.

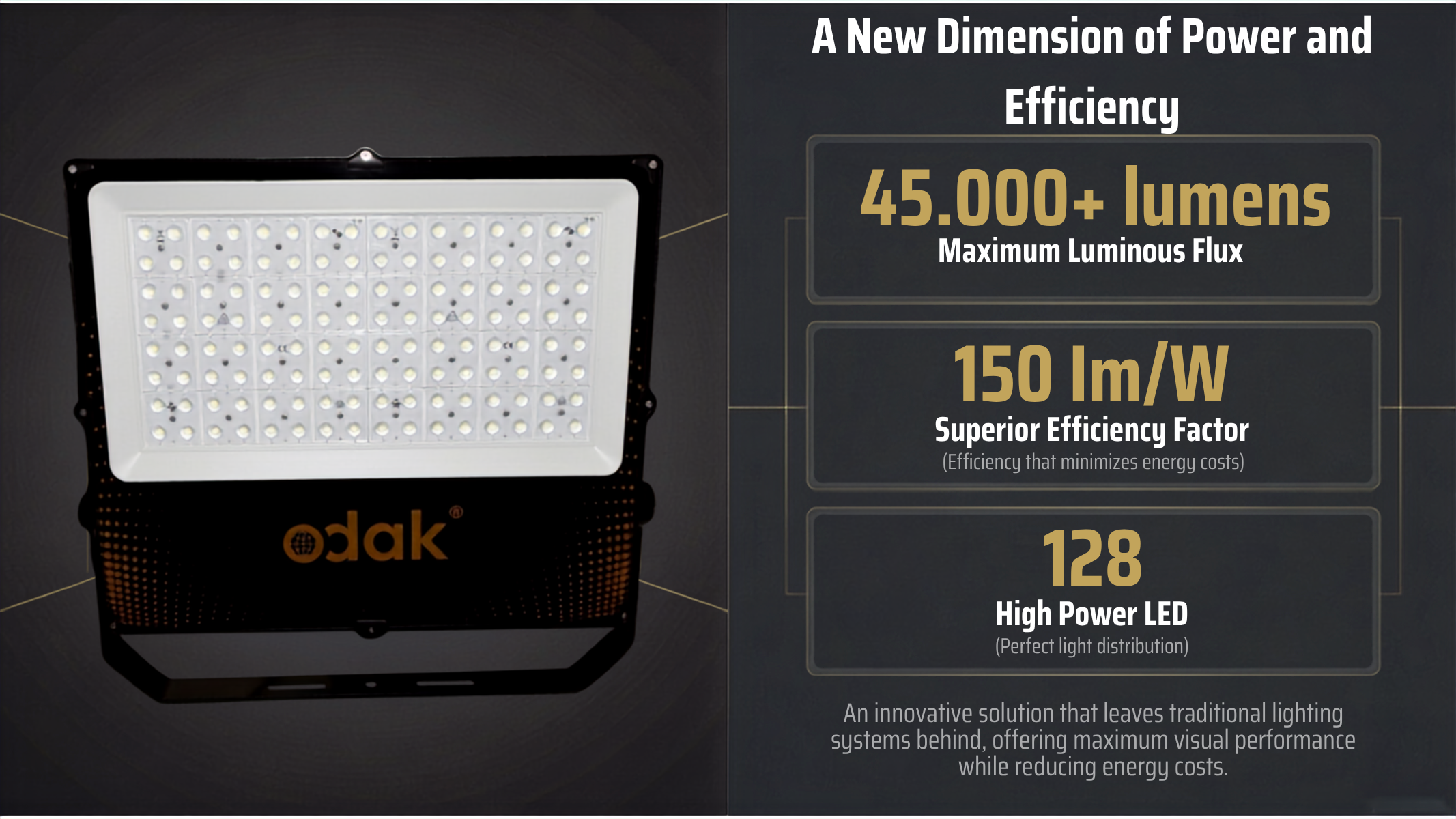

Technical Specifications
  • Model: Deneb
  • Power: 300W
  • Input Voltage: 100-277V AC 50/60Hz
  • Power Coefficient: 0,98
  • Efficiency Factor:150lm/W
  • Lumen: 45.000
  • Number of Led: 128 Led High Power
  • Light Color: 3000-4000-5000-6500K
  • Color Back Efficiency (CRI): 70/80/90 Optional
  • Led LM80(L70) Lifetime: >60.000 Hours
  • Operating Temperature: -30 / +55°C
  • Lens Angle: 7°-10°-15°-30°-45°-60°-80° Type II – Type III Asymmetric
  • Ip Protection Class: IP66 Outdoor

*Lumen values are given for CRI 70.

Application Areas
Sports Field Lighting in International Standards

Military Area Lighting

Factory Lighting

Harbor Lighting

Airport Apron Lighting

Building Facade Lighting

Tower Lighting

Light Distribution

It has a wide range of optical options for different application needs. Multiple optical options provide flexibility in lighting design.

7°
30°
80°

10°
45°

15°
60°

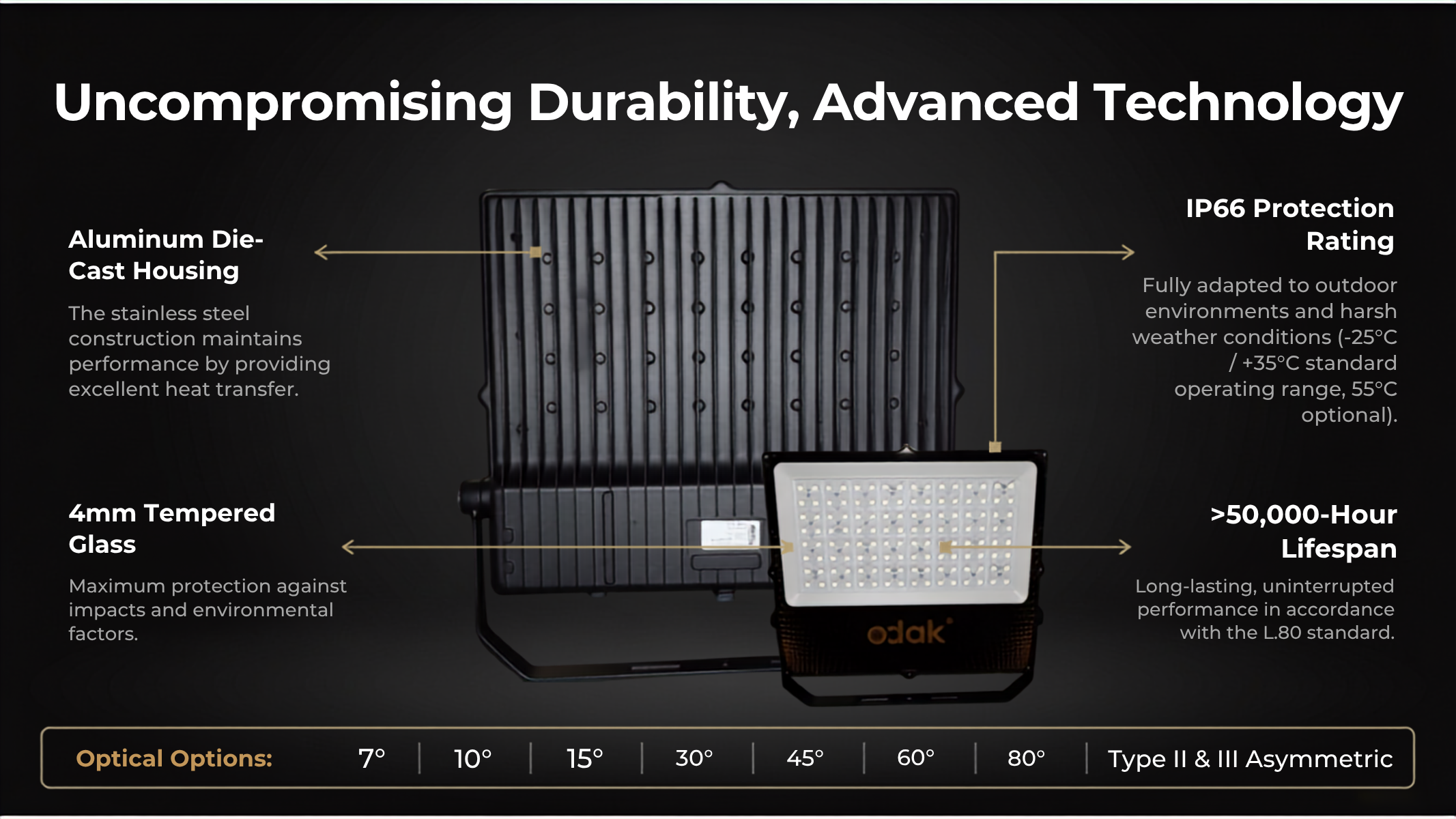

Other Features
  • Body: Aluminum Injection
  • Front Section: 4mm Tempered Glass
  • Mounting Foot Screw Diameter: 8 (Min.) / 10 (Max.) mm
  • Mounting Foot 2 Screw Spacing 100 (Min.)  /  200 (Max.)  mm
  • Weight: 9,3 kg
  • Dimensions: 523 x 545 x 64,8 mm
Product Images and Usage Areas
Test Standards
  • EN 60598-1
  • EN 60598-2-5
Technical Drawing
Downloads

LDT File

Assembly Instructions

Order Code Generator
