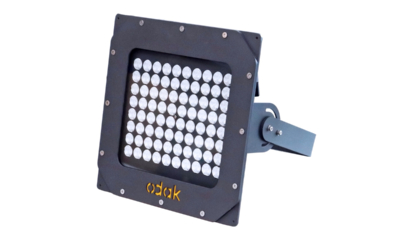

The Infrared LED Floodlight is an LED-based lighting device used to support imaging systems. Its infrared light, which is energy-efficient, has a wavelength that is optimized for night vision.
The luminaire body is engineered to function reliably in challenging conditions. It has IP66 and IK08 protection.
It has an 8° light angle for speed detection, license plate reading, and other road detection systems. This product is available in the following measurements: 8°, 17°, 20°, 25°, 30°, 45°, 60°, and 120°. These measurements are suitable for a variety of applications. This product is available for ANPR and ALPR applications for light from 20 to 200 meters.
- Ideal for Traffic Application.
- Extra Long Lifetime with Very Low Maintenance.
- IP66 Enclosure for Outdoor Installation.
- Compact with integrated LED Light Source.
- Pulse range adjustable from 1.6K~30KHz.
- Independent or External trigger
- Support synchronized with video camera (NTSC&PAL)
- Super long range up to 400 m.
- Power: 48W
- Input Voltage: 200-240 V AC 50/60 Hz
- Power Factor: >0,95
- Wavelength: 850 nm
- Infrared Emission: 19 W
- Light Angle: 8°, 17°, 25°, 40°, 45°, 60°, 90°, 110°
- IP Protection Class: IP 66
- Dimensions: 295x250x65 mm
- Weight: 2.5 kg
- Warranty Period: 3 Years
Imaging Systems
ANPR
It has a wide range of optical options for different application needs. Multiple optical options provide flexibility in lighting design.
8°
17°
25°
40°
45°
60°
90°
120°
- Body: Aluminum Injection
- Color Options: RAL 9004
- Front Cover Tempered Glass
- Lens: PMMA
- Light Source: LED
- Impact Resistance: IK 08
- Total Harmonic Distortion: <%20
- CE Marking: Yes
- RoHS Compliance: Yes
- Lifetime: ≥30,000 Hours
- Throttling Options: 1-10V, TRIAC, DALI
- Operating Temperature: -25°/+55°C
- EN 60598-1
- EN 60598-2-5
- EN 60529
- IEC TR 62778
- LM 79-18
| Product Variations | Power | Input Voltage | Infrared Emission | Wavelength | Light Angle | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| ANT-048SM-00082-850-9004 | 48 W | 200-240 V AC 50/60 Hz | 27 W | 850 nm | 8° | 295x250x65 mm | 2.5 kg |
| ANT-048SM-00172-850-9004 | 48 W | 200-240 V AC 50/60 Hz | 27 W | 850 nm | 17° | 295x250x65 mm | 2.5 kg |
| ANT-048SM-00252-850-9004 | 48 W | 200-240 V AC 50/60 Hz | 27 W | 850 nm | 25° | 295x250x65 mm | 2.5 kg |
| ANT-048SM-00402-850-9004 | 48 W | 200-240 V AC 50/60 Hz | 27 W | 850 nm | 40° | 295x250x65 mm | 2.5 kg |
| ANT-048SM-00452-850-9004 | 48 W | 200-240 V AC 50/60 Hz | 27 W | 850 nm | 45° | 295x250x65 mm | 2.5 kg |
| ANT-048SM-00602-850-9004 | 48 W | 200-240 V AC 50/60 Hz | 27 W | 850 nm | 60° | 295x250x65 mm | 2.5 kg |
| ANT-048SM-00902-850-9004 | 48 W | 200-240 V AC 50/60 Hz | 27 W | 850 nm | 90° | 295x250x65 mm | 2.5 kg |
| ANT-048SM-01202-850-9004 | 48 W | 200-240 V AC 50/60 Hz | 27 W | 850 nm | 120° | 295x250x65 mm | 2.5 kg |
